Telefunken 6922 / E88CC - gold pins, phono grade

Telefunken 6922 / E88CC - gold pins, phono grade
Telefunken 6922 / E88CC - gold pins, phono gradeTelefunken E88CC - gold pinsTelefunken diamond imprint
Price: $189.00
1 in stock
Item Number: 1042
Manufacturer: Telefunken
Description

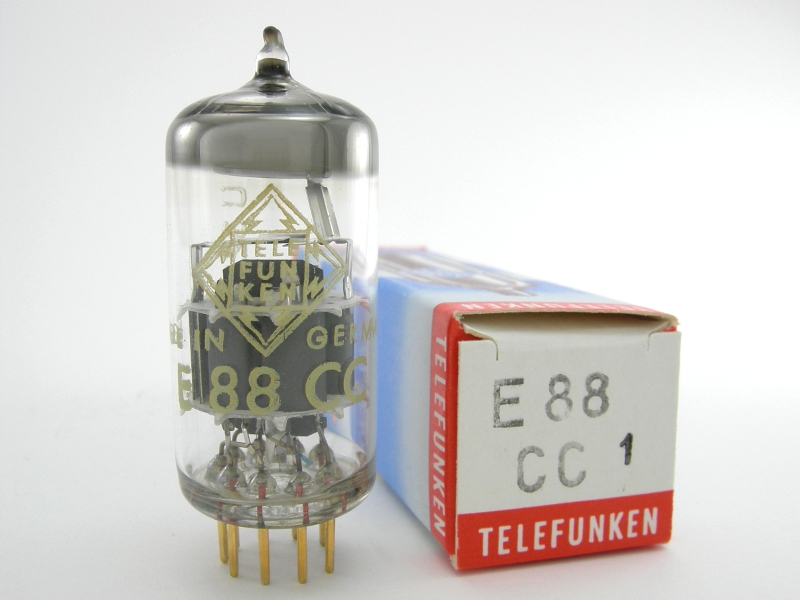

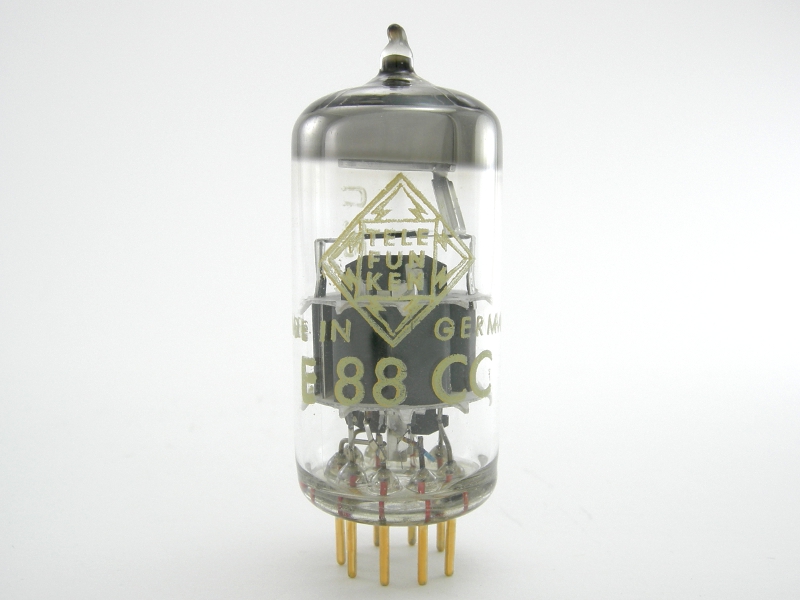

This Telefunken E88CC tube is a premium quality 6DJ8 / 6922 tube type.

It has the following characteristics:
  • gray risers
  • round shield with two raised rectangular sections on opposite sides
  • halo getter with slanted support
  • white print with Telefunken logo and Ulm, Germany date code
  • Telefunken diamond imprint in the base
  • gold pins
Testing

This tube tests as new. It has been screened for gas, heater-cathode leakage, shorts, and excessive noise and microphonics on each triode section. It was tested at typical operating voltages on a laboratory grade Amplitrex AT1000 (manual setting, fixed bias mode). Learn more about our testing process here.

Noise and microphonics

This tube tests as "phono grade"—the quietest range for noise and microphonics--on our custom noise testing equipment. It is an excellent choice for
phono stages, microphone preamps, DA converters, and other sensitive applications.

Pricing

This tube is sold individually. It ships in a new white box with test results for current draw (mA) and transconductance (Gm) for each triode section. Photo is a sample from the lot.
